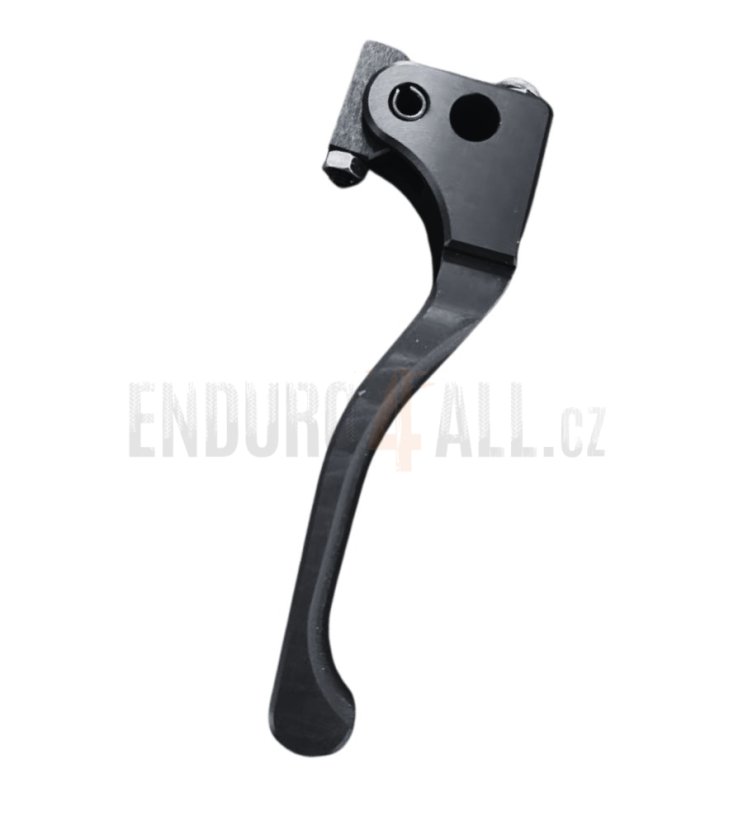

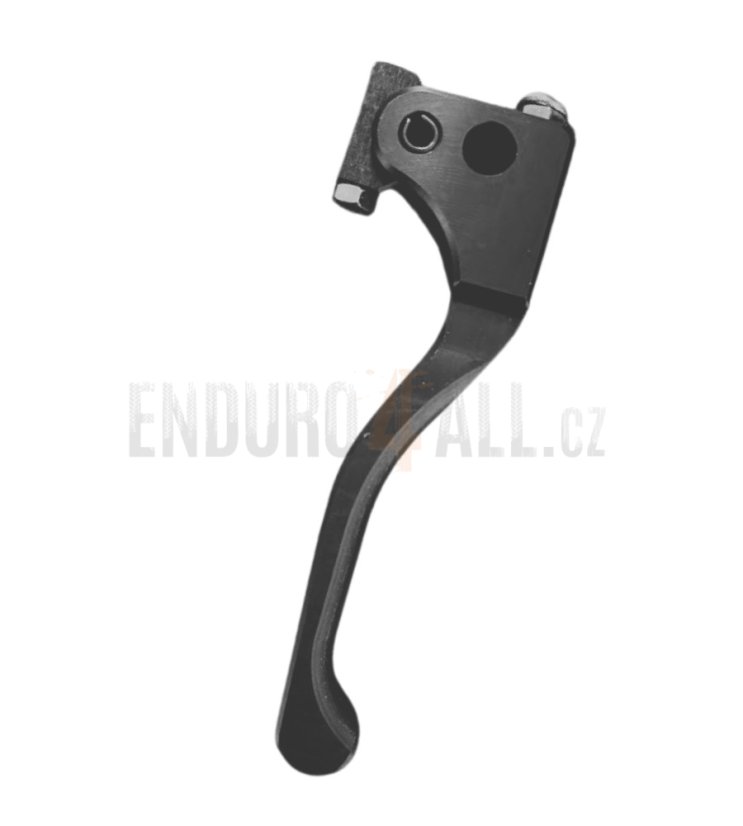

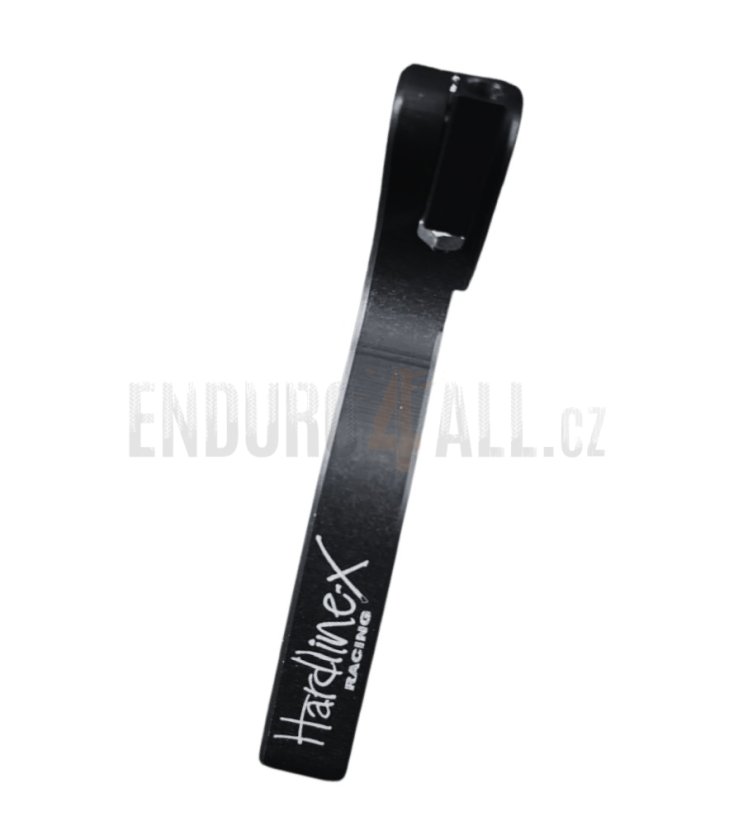

Clutch lever V1 Brembo HARDLINE-X

The Hardline-x clutch lever is designed with comfort and easy customization in mind. Thanks to its ergonomic design and adjustability, you can easily customize it to your needs. Made from high-quality forged aluminum, it offers reliability and better control over clutch operation.

Why Choose the Hardline-x Lever?

• Reduces clutch operation effort by up to 20%.
• Offers smoother operation and better modulation.
• Ideal as a direct replacement for the original Brembo lever.

Compatibility:

• KTM: 450 cc (2009–2020), 250/300 cc (2006–2020), 350 cc (2011–2020), 500 cc (2012–2020)
• Beta: All models equipped with Brembo system
• Sherco: All models equipped with Brembo system

Adjustment Recommendations:

• The lever angle can be adjusted with the screw on the top of the lever
• You can set the clutch engagement point with the M4 Allen screw on the bottom of the pin.
• We recommend securing the desired position with screw locking adhesive.

Note: The lever position does not affect the clutch engagement point.

Tips for Correct Installation:

• Set the clutch free play to 2 mm.
• Use fresh hydraulic oil.
• Secure the screws with thread locker.

For more information, watch the instructional video or contact us.
